The “Double Block and Bleed Isolation Philosophy” requires two in-line isolation valves and a bleed valve, used to drain or vent trapped fluid between the two closure elements in order to safely isolate safely the downstream pipe. This feature can be achieved with one single valves c/w a bleed port between the obturators.
MAIN APPLICATIONS:
•Offshore oil & gas production
•Gas & oil terminals
•Chemical & Petrochemical
•Refining
•Fiscal Metering Skid Manufacturing
•LNG gas carrier
•Process/ Power industr y contractors
MÒRAICHEAN:
•Space and weight saving
•Cost saving (product & installation)
•Minimized leak paths
•Increased line structural integrity
•ESDV+MOV or ESDV+XV configurations
•Increasesd reliability of the system
GNÌOMHAN:
• Anti blow out/low emission stems
• Fire safe & anti-static design
• Independent ball and stem
• Self aligning trims
• Self relieving/ Double piston effect
floating seats
• Soft or metal seated
Design is available in side entry, (bolted, welded body) and for onshore, offshore (top side) or sub-sea configurations.
Bleed/Vent system can be provided with Globe, Gate or Ball valves as per customers requirement.

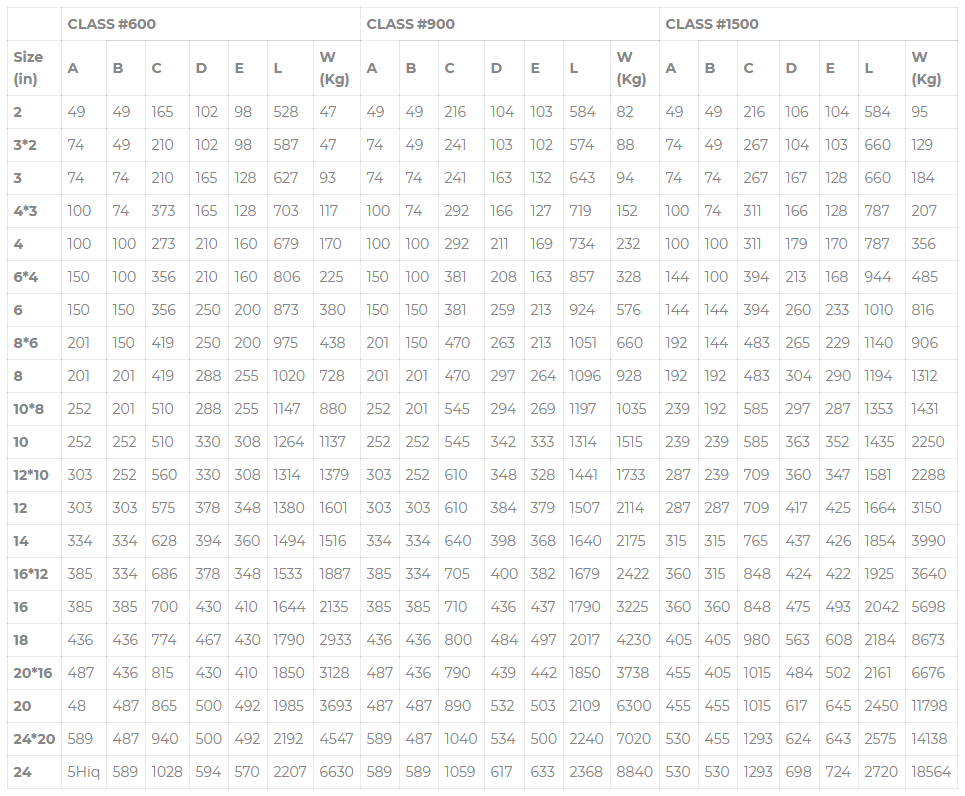

• All dimensions except where other wise specified are in mm.
• Weight figures are relevant to flanged end valves.
• Note: For dimensions and weights in larger sizes consult the factory.
• Dimensions C, D, E, and weights are subject to changewithout notice.
• Face-to-face dimensions not listed in industry standards are subject to change without notice.
Tha calpa clàraichte GCGV aig 228.80 millean yuan, a’ còmhdach farsaingeachd de 22300m². Tha còrr is 200 neach-obrach ann, agus tha ceum colaiste no nas àirde aig còrr is 30% dhiubh, nam measg 25 teicneòlaiche àrd-ìre agus eadar-mheadhanach. Tha ionadan innealachaidh, deilichean CNC, deilichean dìreach CNC aig a’ chompanaidh,
